CV≤3% 220T/H Automated Immunoassay Analyzer in AP Platform CIA1800


Medical Immunoassay Analyzer CIA1800 for CLIA in IVD

Features:
①. 25 Sample positions.
②. 60 Reagent positions.
③. 90 Reaction cuvettes.
④. 220 Tests per hour.

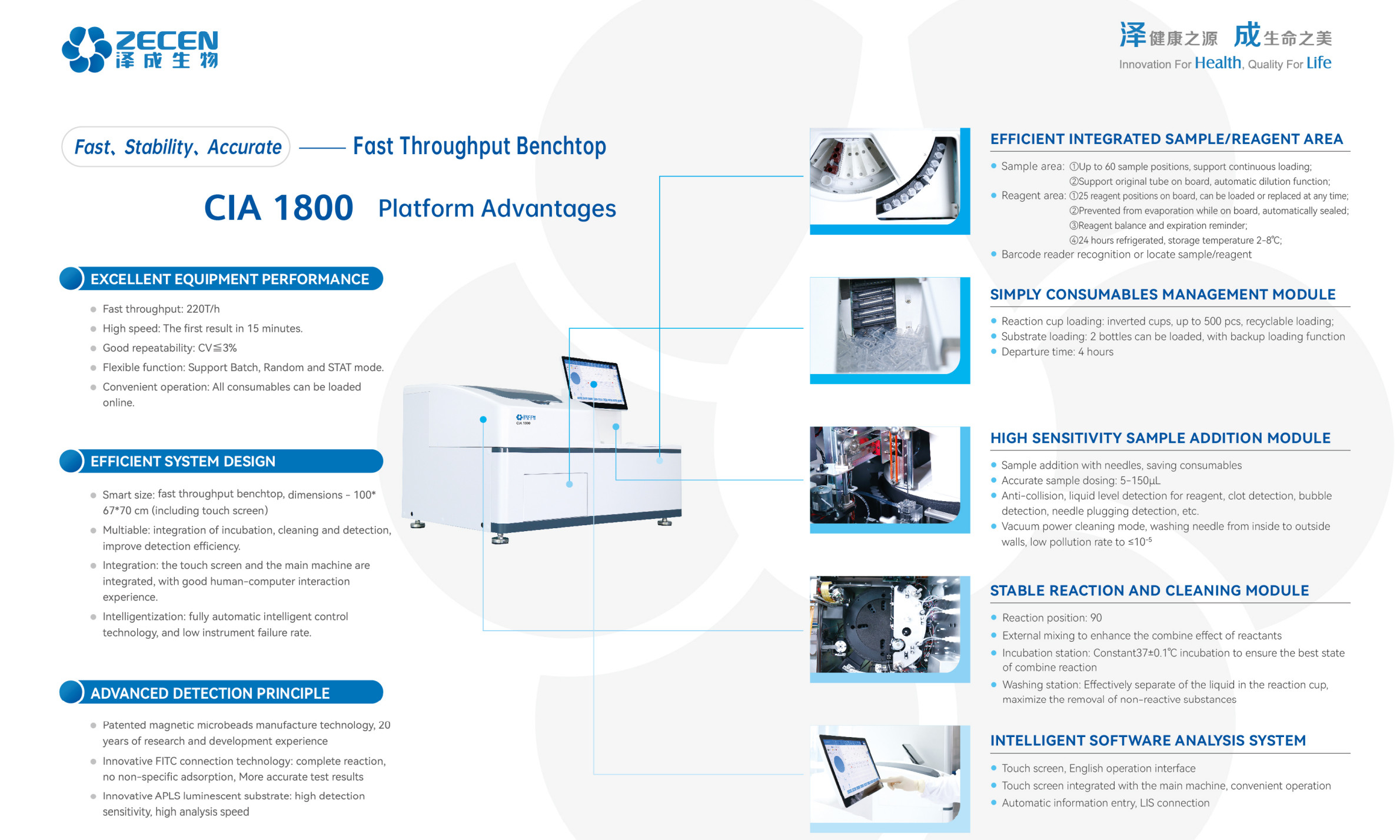

Advantages:

• EFFICIENT INTEGRATED SAMPLE/REAGENTAREA

Sample area:
①Up to 60sample positionssupportcontinuous loading
②Support original tube on boardautomatic dilution function;
Reagent area:
①25 reagent positions on boardcan be loaded or replaced at any time
②Prevented from evaporation while on boardautomatically sealed
③Reagent balance and expiration reminder;
④24 hours refrigeratedstorage temperature2-8℃
Barcode reader recognition or locate sample/reagent

• SIMPLY CONSUMABLES MANAGEMENT MODULE

Reaction cup loading:inverted cupsup to 500 pcsrecyclable loading

Substrate loading: 2 bottles can be loadedwith backup loading function

Departure time:4 hours

• HIGH SENSITIVITY SAMPLE ADDITION MODULE

Sample addition with needlessaving consumables

Accurate sample dosing:5-150uL
Vacuum power cleaning modewashing needle from inside to outside walls, low pollution rateto≤10-5

• STABLE REACTION AND CLEANING MODULE

Reaction position:90
External mixing to enhance the combine effect of reactants
Incubation station:Constant37±0.1℃incubation to ensure the beststate ofcombine reaction
Washing station: Effectively separate of the liquid in the reaction cup maximize the removal ofnon-reactive substances

• INTELLIGENT SOFTWARE ANALYSIS SYSTEM

Touch screen,English operation interface
Touch screen integrated with the main machineconvenient operation Automatic information entryLIS connection













Customized service:

Zecen Biotech CO., LTD., founded in 2011, is a leading Chinese diagnostics manufacturer specializing in in-vitro diagnostics devices and reagents. Zecen focus on the Chemiluminescent immunoassay (CLIA) field. With all products CE marked, our market presence currently spreads from across China to other countries including India, Switzerland, Russia etc., Zecen is expanding its footprint to become a global brand.

Zecen is the only enterprise with independent intellectual property rights in the entire chemiluminescence industry chain in China, including reagent, instrument, magnetic microbead, and reagent raw material. Our current products include more than 100 assays, from thyroid, inflammation, diabetes, tumer markers, immune disorders, hormones to cardiac markers. Our ever-expanding test menu helps our customers and collaborators keep up with the demands of healthcare sector. Zecen is striving for innovation and perfection to deliver the best products to the customers.

As a manufacturer, Zecen provide the OEM, ODM and other customized service of all products. We have the core R&D centers and innovative ability to lay a solid foundation for developing the broadest range of CLIA analyzers and test menu. High-quality sales and after-sales links provide the more intimate service. The patent and CE certification give us the confident sending all over the world, and more than 50 companys in the requiement of customized and have a long term coorperation with Zecen.
