60T 75 samples on borad Benchtop Automated Immunoassay Analyzer CIA
600 withTips for the Hospitals or Laboratory
| Model | Automated Immunoassay Analyzer CIA1800 |
| Overall Performance | Throughput | 220 Tests/hour |
| Repeatability | CV≤3% |
| Sample & Reagent System | Sample Positions | 75 sample positions |
| Reagent Position | 15 reagent positions |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Reaction System | Temperature Control | 37+0.1℃, real-time monitoring |
| Position | 90 |
| Mixer Probe | Independent stirring |
| Calibration | Calibration | 2 or 6-point |
| Data Management | Software | Touch screen, English operation interface |
Descriptions:
Reaction Principle
1. Micro superparamagnetic beads, quick response and complete
reaction.
2. New APLS substrate,and the time to reach platform stage can be
shortened to less than 20s, which can greatly shorten the test
time.
3. Complete test menu which can be applied in the detections of
thyroid function, fertility, GlycoMetabolism, bone metabolism,
tumor markers, Hepatic fibrosis, Prenatal screening, cardiac
markers, etc. The menu will be expanded.
4. Six-point / two-point calibration.
Reagent Loading
1. 10 kinds of reagents can be loaded at the same time, and
2. Continuous loading can be implemented without stopping the test.
3. Barcode scanning to load the reagent kits.
4. Automatic continuous magnetic bead mixing system.
Sample Loading

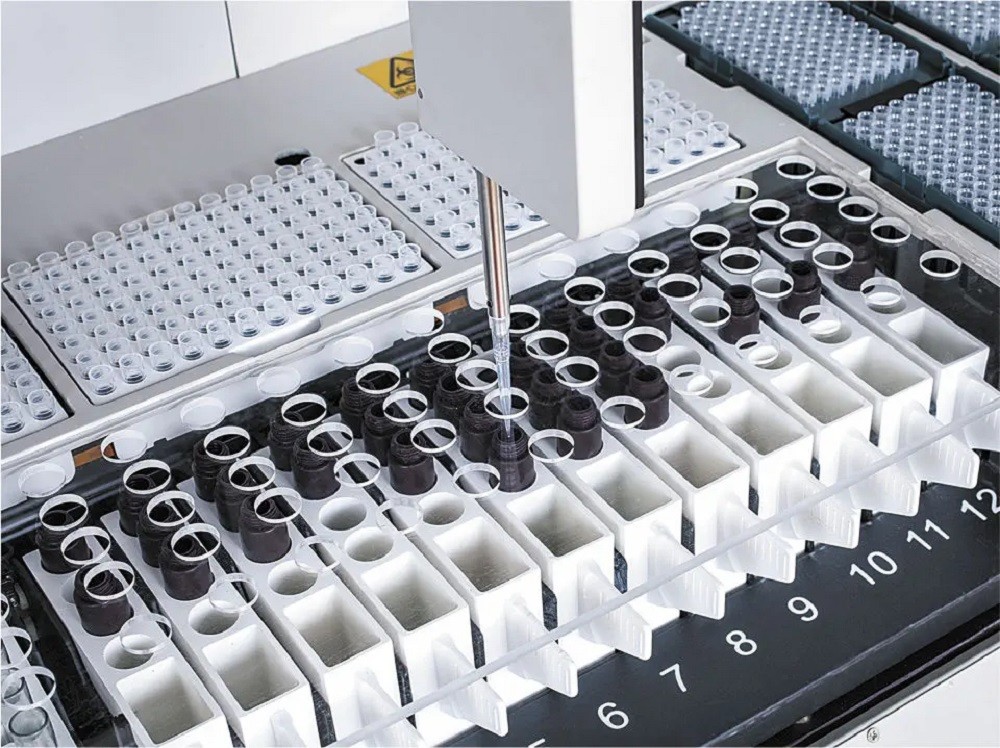

1. 75 pcs of samples can be loaded at the same time, and continuous
loading can be without stopping the test process.
2. Networking with LIS connection.
3. Compatible with primary collection tubes(75mm/100mm).
Other Advantages
1. Disposable tip sampling system to avoid cross-contamination
2. 24-hour standby,samples can be detected at any time
3. Batch processing, STAT
4. Liquid level detection , reagent volume monitoring, failure
alarm
5. Automatic dilution, and the dilution ratio can be set randomly.
Support Customized Service
On the base of the strong ability of D&R, we provide the
CDMO(Contract Development Manufacture Organization) service. It
includes 4 kinds, OEM, ODM, ADM and MAH. About more cooperation details, please connect us at any time.
Company Profile
Zecen Biotech CO., LTD., founded in 2011, is a leading Chinese
diagnostics manufacturer specializing in in-vitro diagnostics
devices and reagents. Zecen focus on the Chemiluminescent
immunoassay (CLIA) field. With all products CE marked, our market
presence currently spreads from across China to other countries
including India, Switzerland, Russia etc., Zecen is expanding its
footprint to become a global brand.
Zecen is the only enterprise with independent intellectual property
rights in the entire chemiluminescence industry chain in China,
including reagent, instrument, magnetic microbead, and reagent raw
material. Our current products include more than 100 assays, from
thyroid, inflammation, diabetes, tumer markers, immune disorders,
hormones to cardiac markers. Our ever-expanding test menu helps our
customers and collaborators keep up with the demands of healthcare
sector. Zecen is striving for innovation and perfection to deliver
the best products to the customers.
As a manufacturer, Zecen provide the OEM, ODM and other customized
service of all products. We have the core R&D centers and
innovative ability to lay a solid foundation for developing the
broadest range of CLIA analyzers and test menu. High-quality sales
and after-sales links provide the more intimate service. The patent
and CE certification give us the confident sending all over the
world, and more than 50 companys in the requiement of customized
and have a long term coorperation with Zecen.
